RAA489400 Datasheet
1. Overview
1.1 Block Diagram

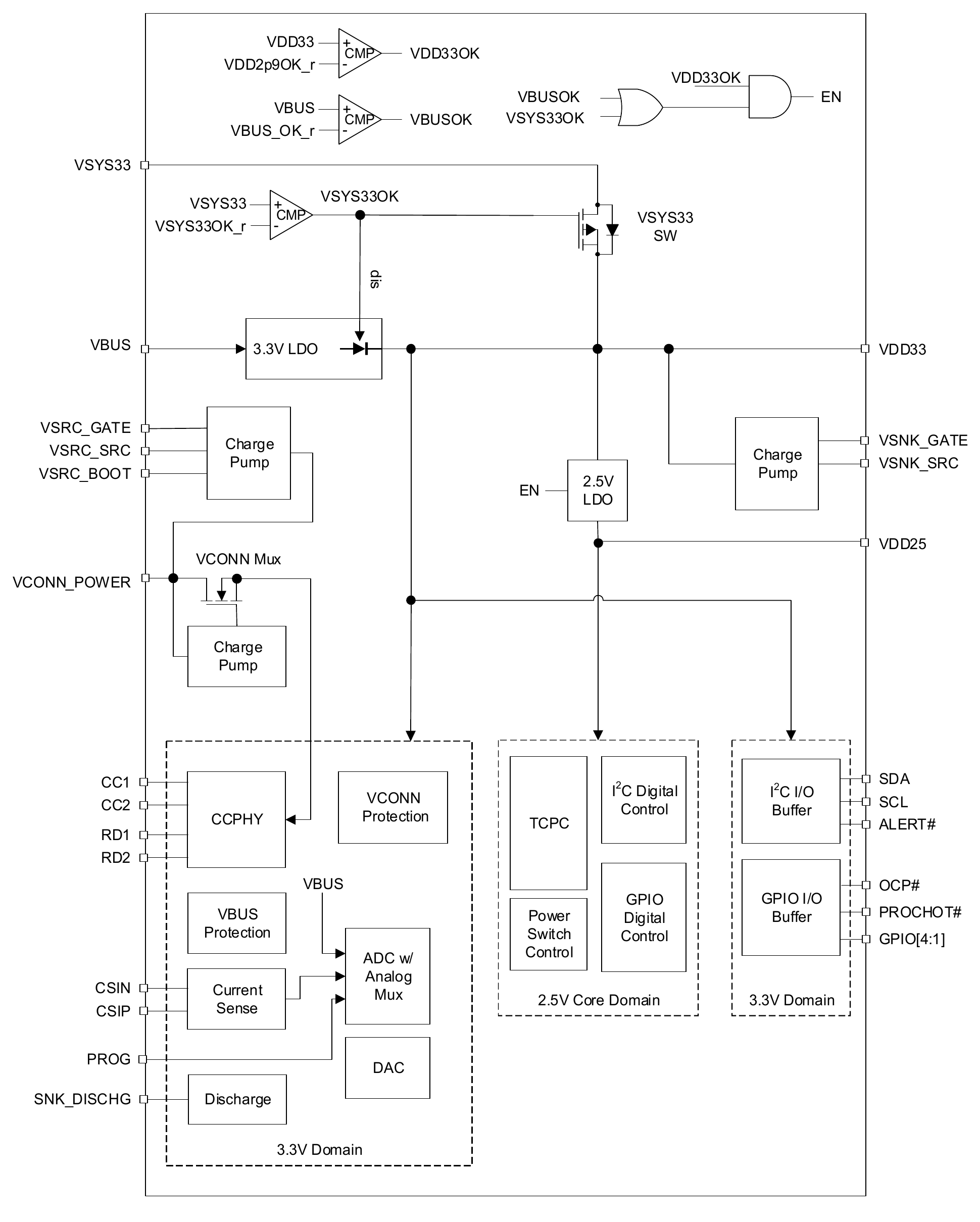

Figure 1. Block Diagram
1.2 Typical Application

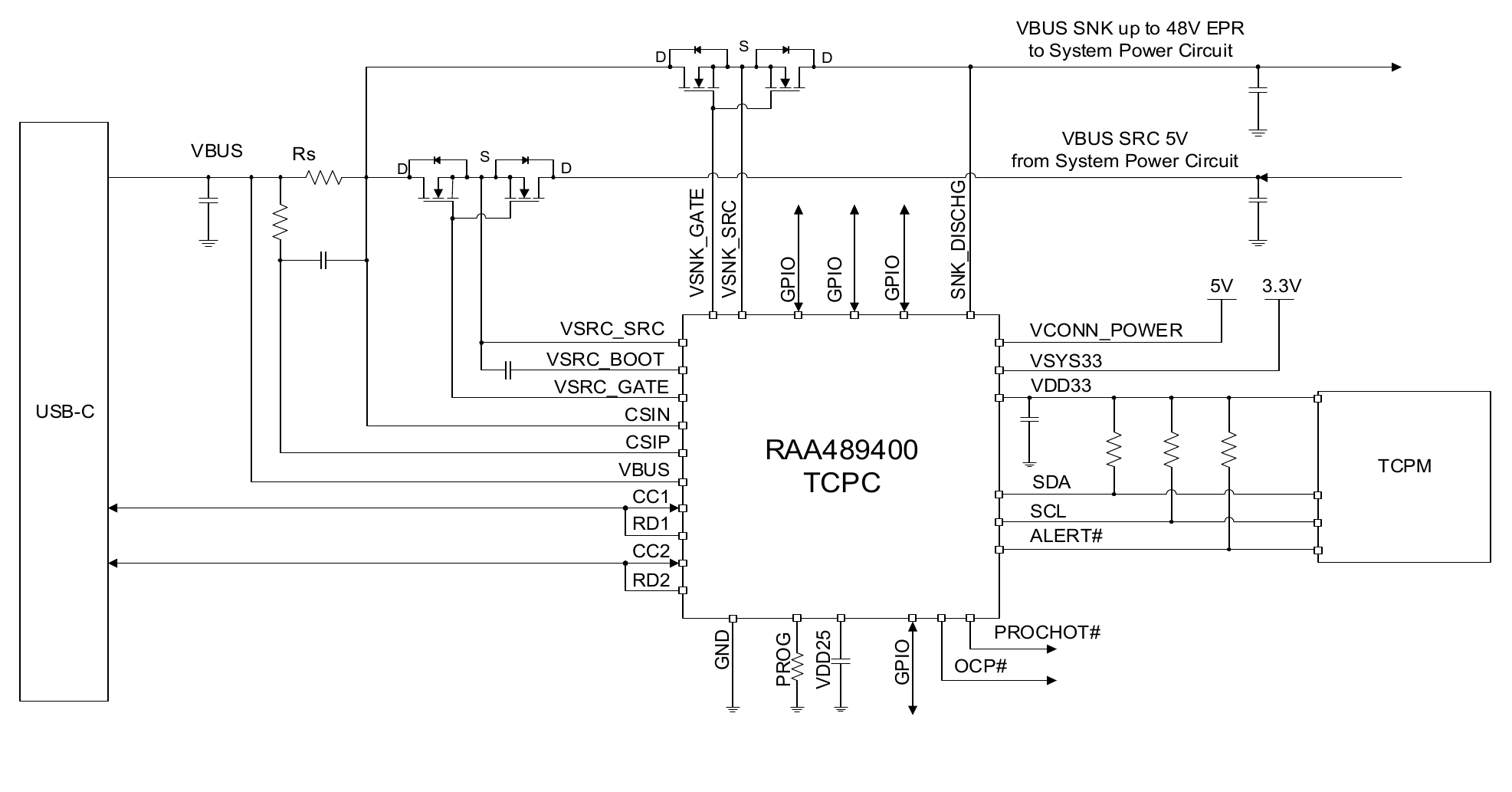

Figure 2. Typical USB-C Application Based on TCPC and TCPM for DRP (Dual Role Power) System, Supports VBUS SNK: Up to 48V and SRC: Up to 5V

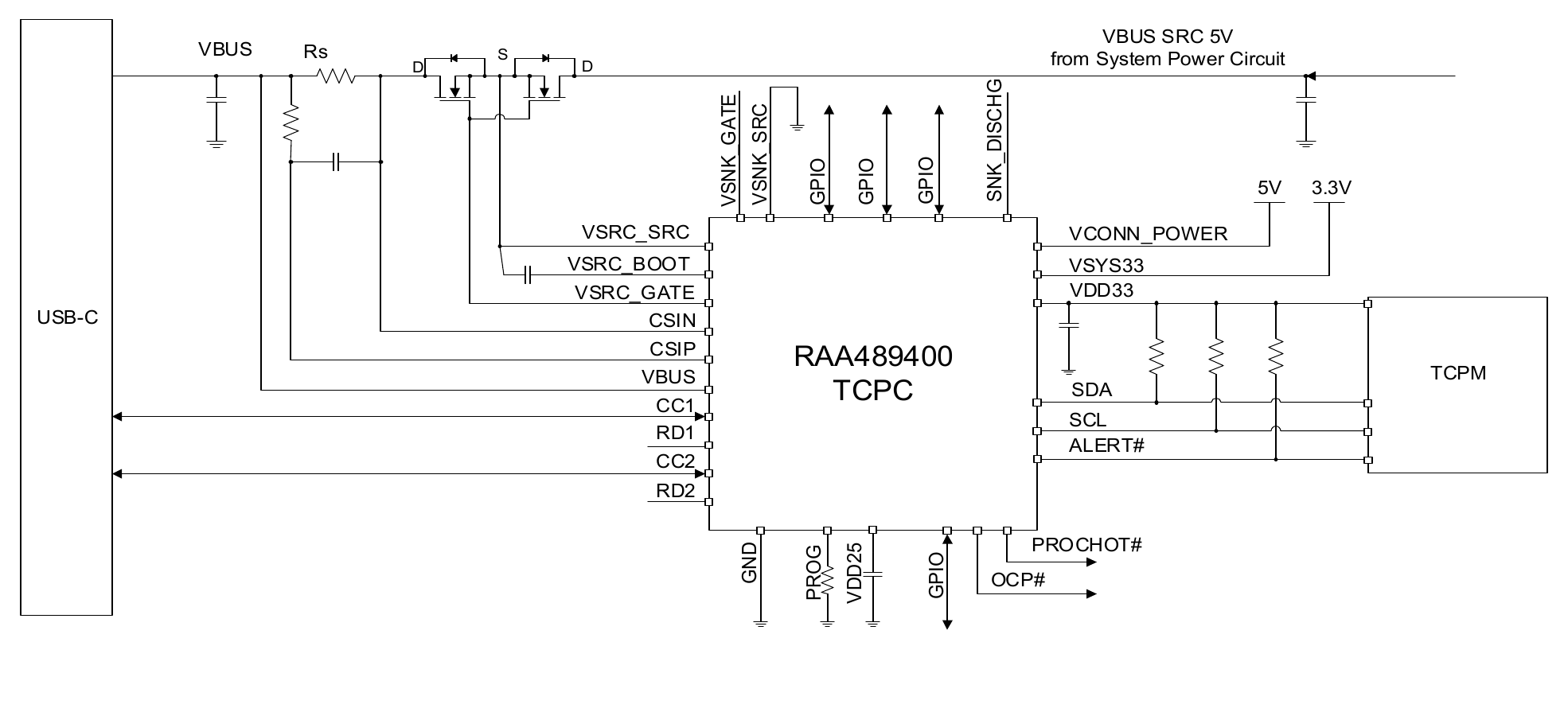

Figure 3. Typical USB-C Application Based on TCPC and TCPM for Source Only System, Supports VBUS SRC: Up to 5V

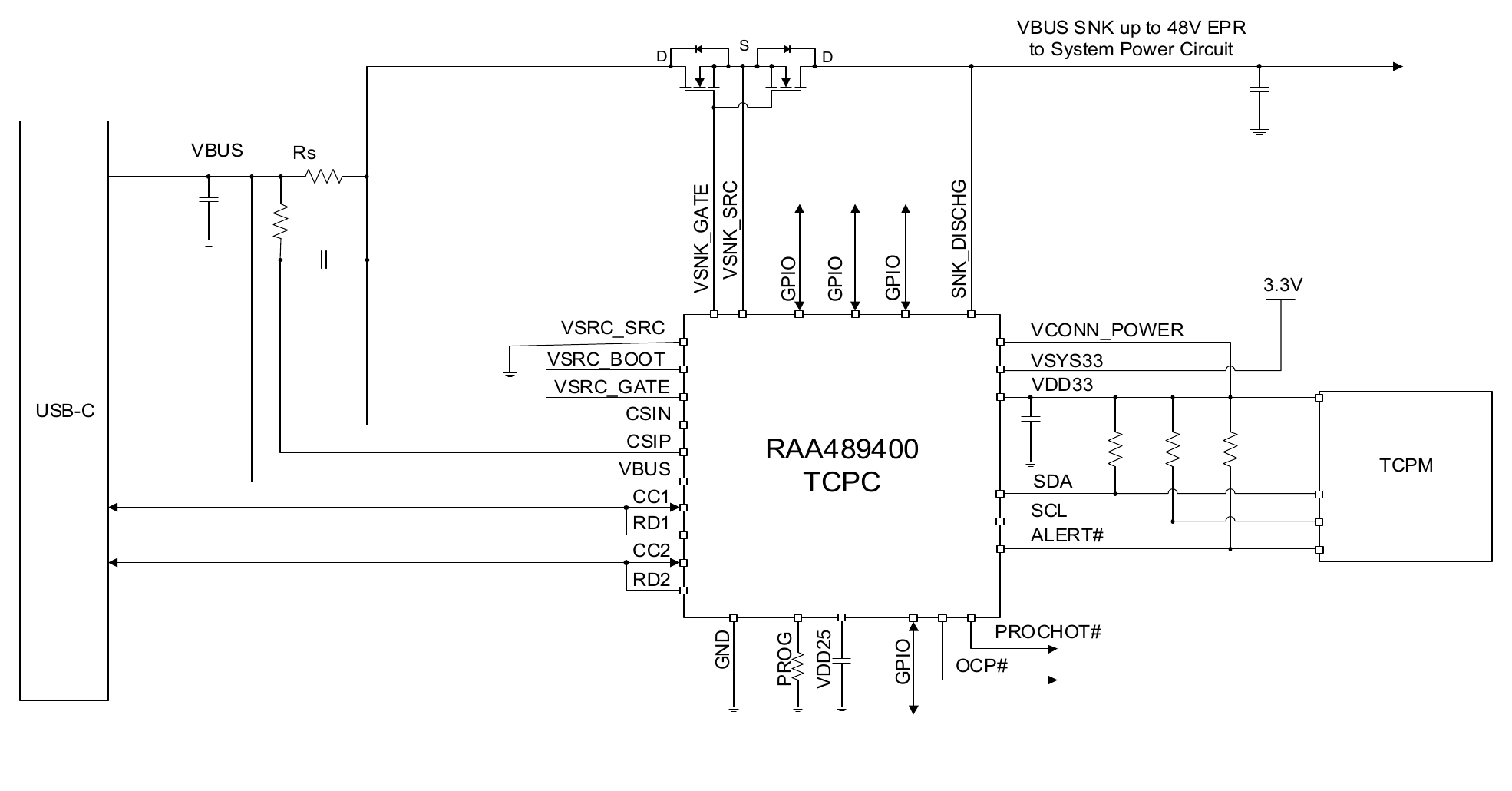

Figure 4. Typical USB-C Application Based on TCPC and TCPM for Sink Only System, Supports VBUS SNK: Up to 48V

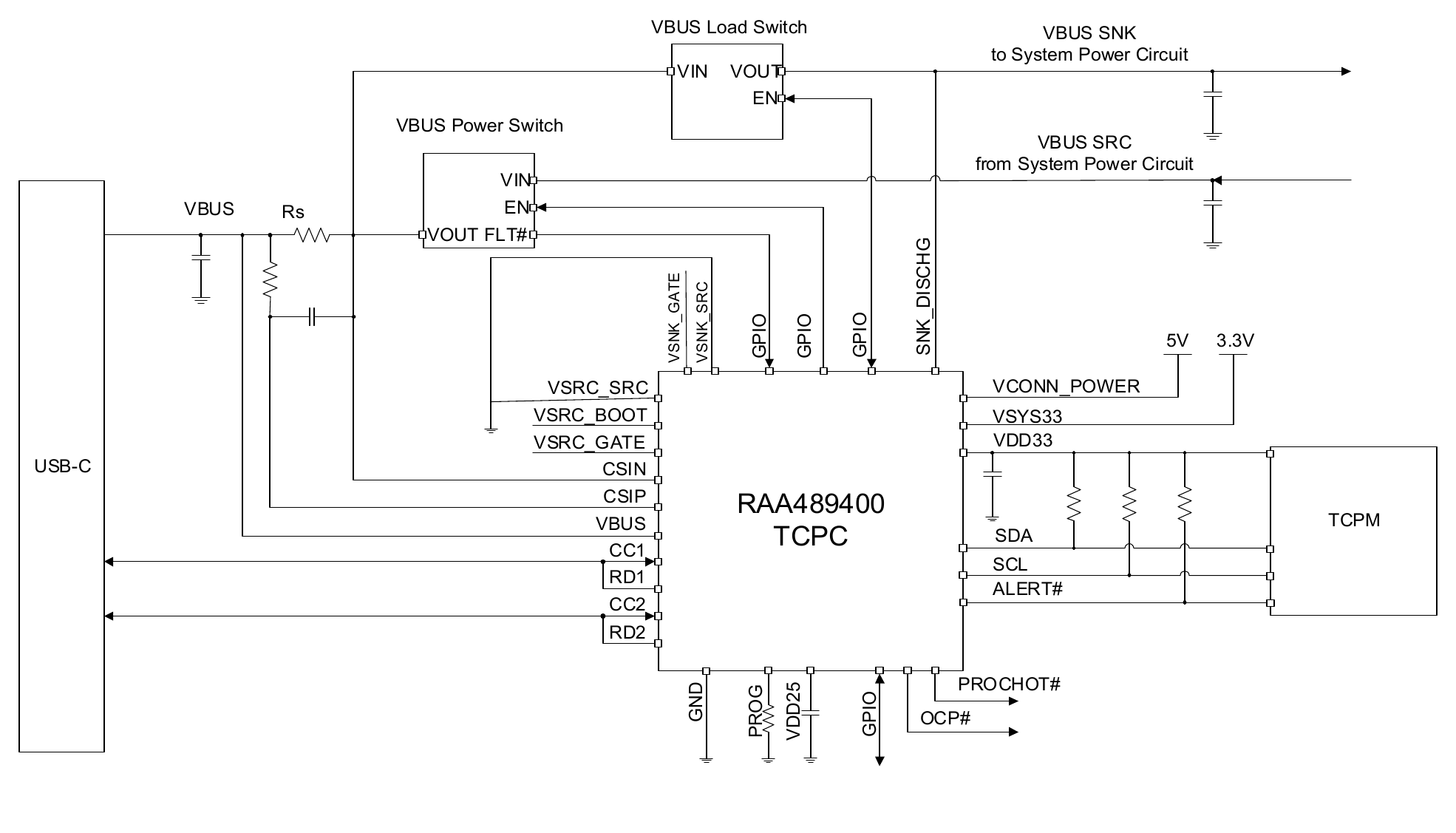

Figure 5. Typical USB-C Application Based on TCPC and TCPM for DRP System with GPIO Control

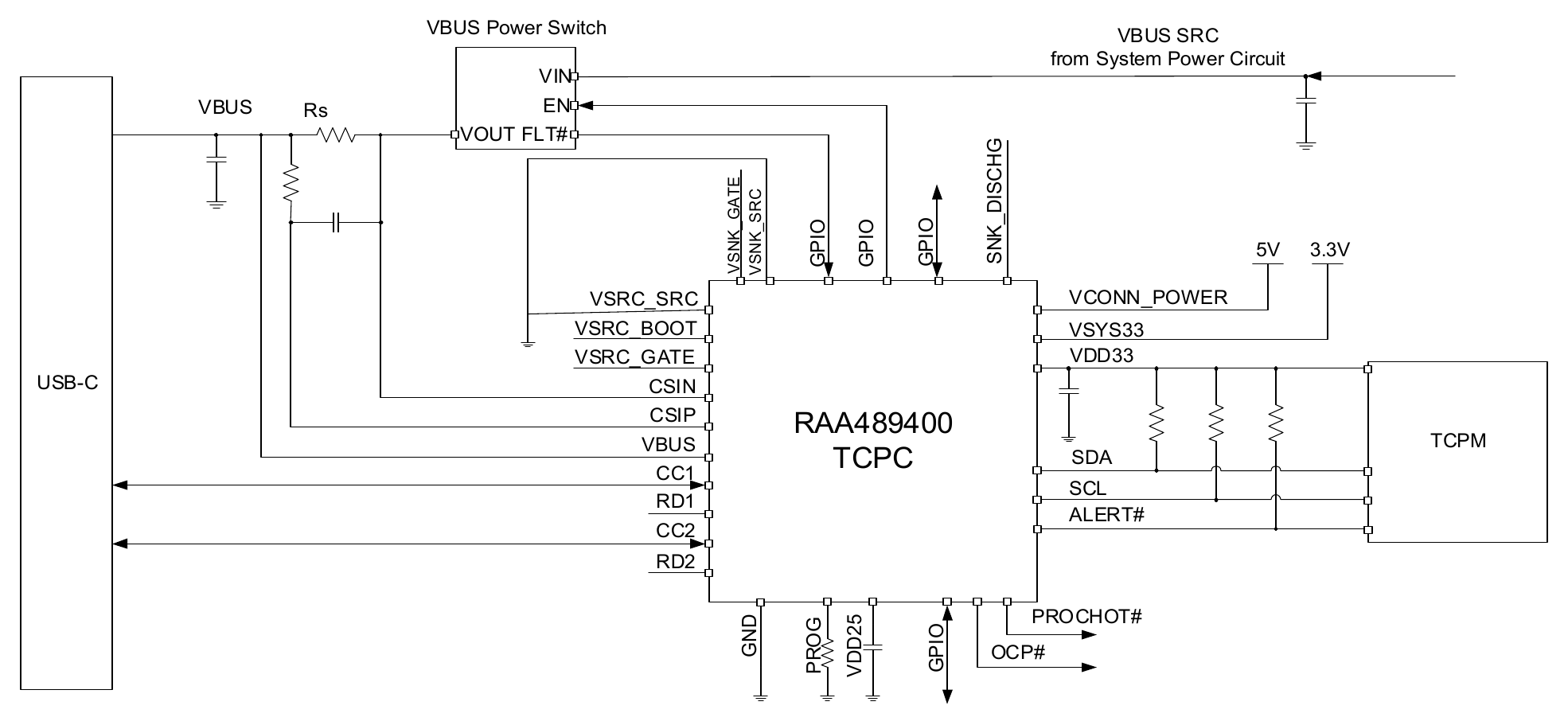

Figure 6. Typical USB-C Application based on TCPC and TCPM for Source Only System with GPIO Control

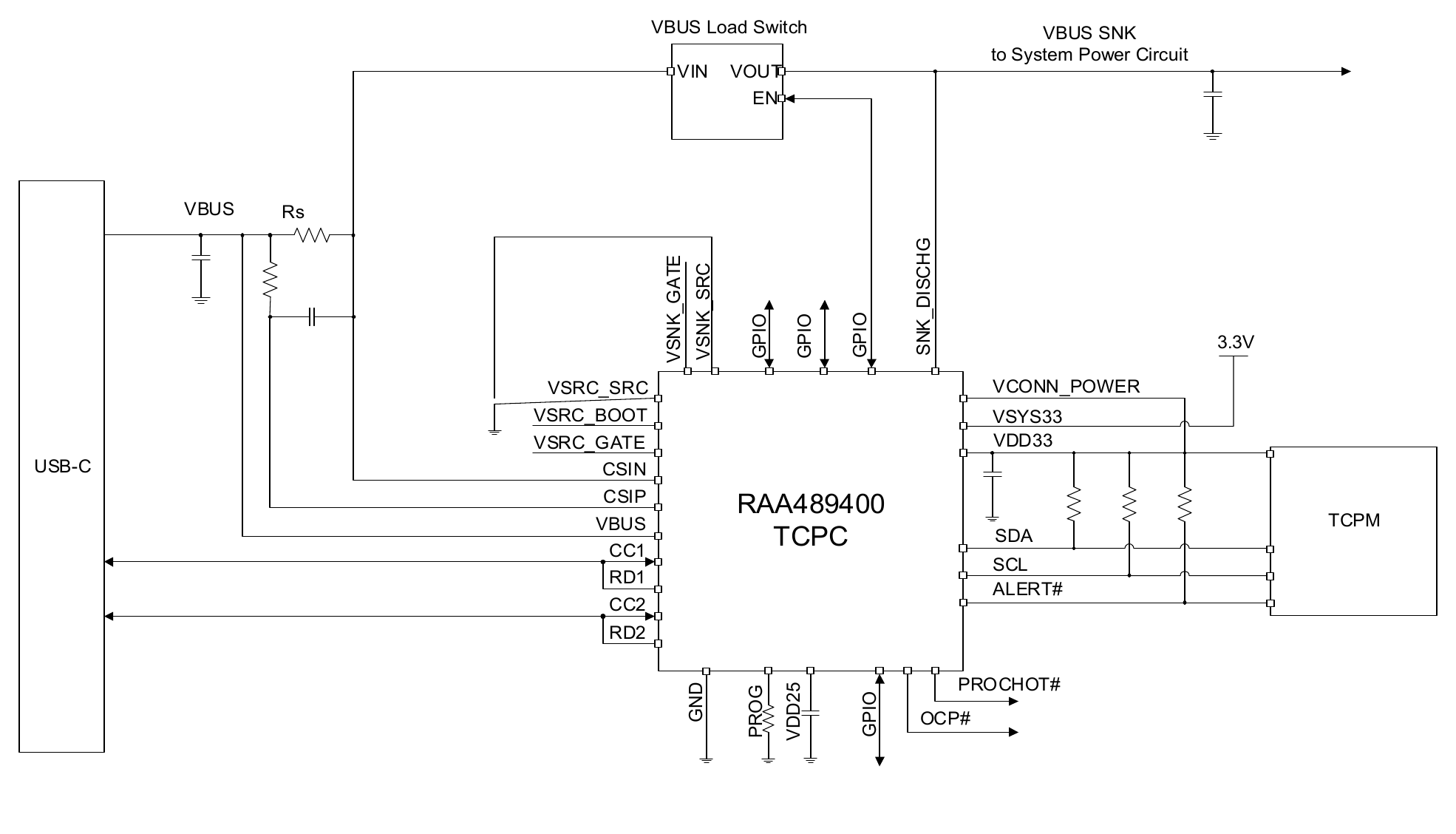

Figure 7. Typical USB-C Application Based on TCPC and TCPM for Sink Only System with GPIO Control

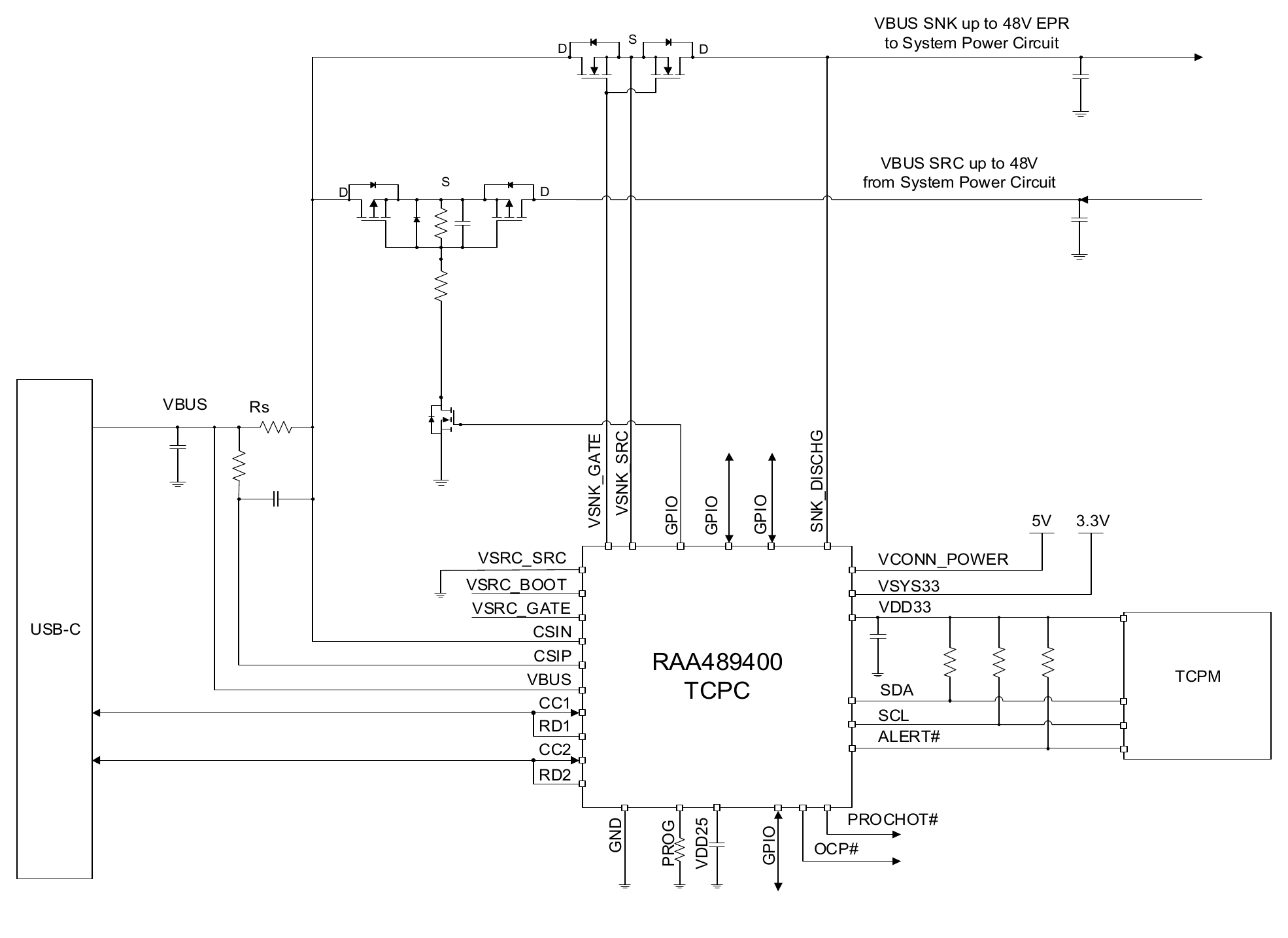

Figure 8. Example of USB-C Application Based on TCPC and TCPM for DRP (Dual Role Power) System with VSNK_GATE and GPIO Control, Supports VBUS SNK: Up to 48V and SRC: Up to 48V

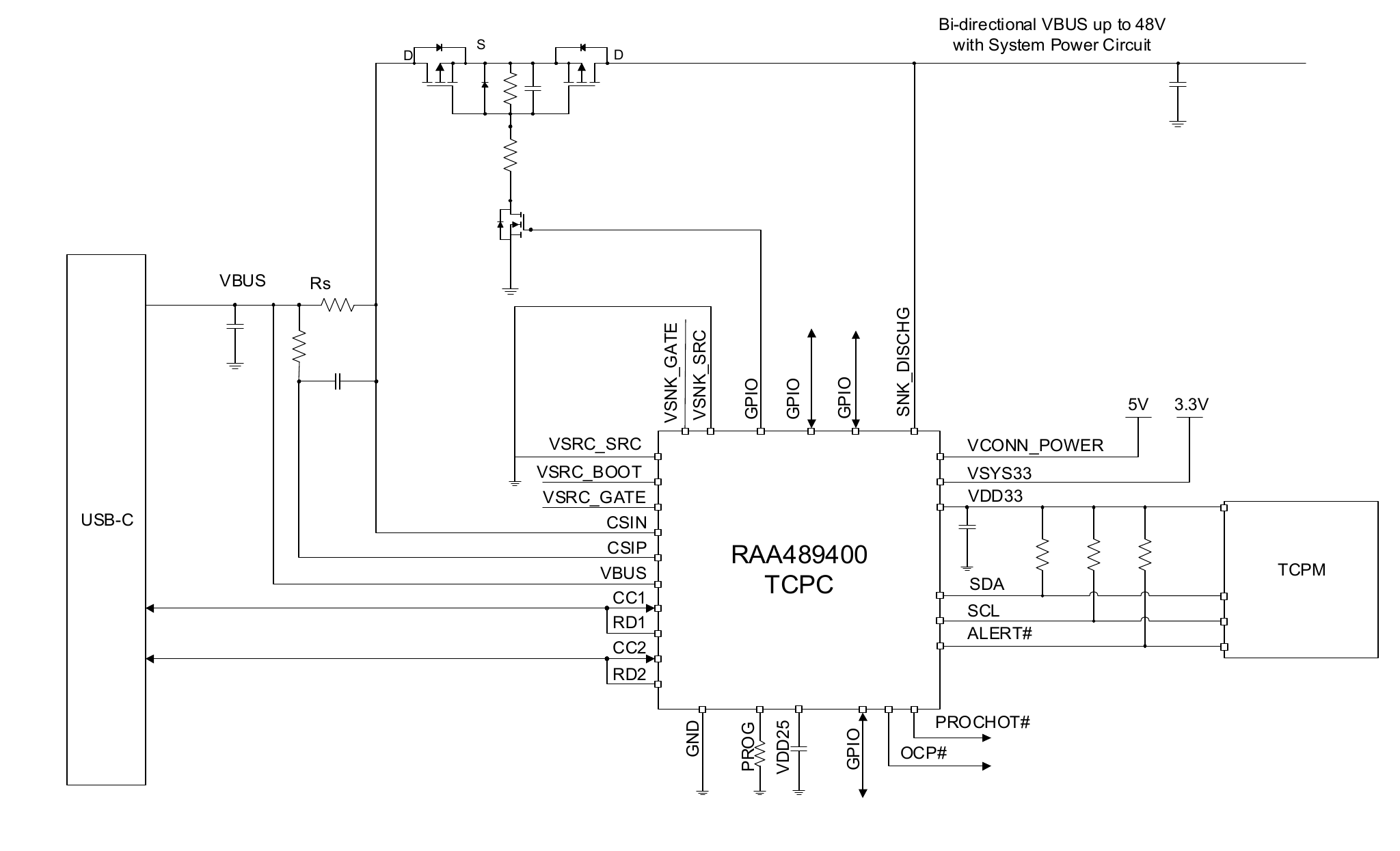

Figure 9. Example of USB-C Application Based on TCPC and TCPM for Bi-directional DRP (Dual Role Power) System with GPIO Control, Supports VBUS SNK: Up to 48V and SRC: Up to 48V
