RAA489400 Datasheet

4. Typical Performance Graphs

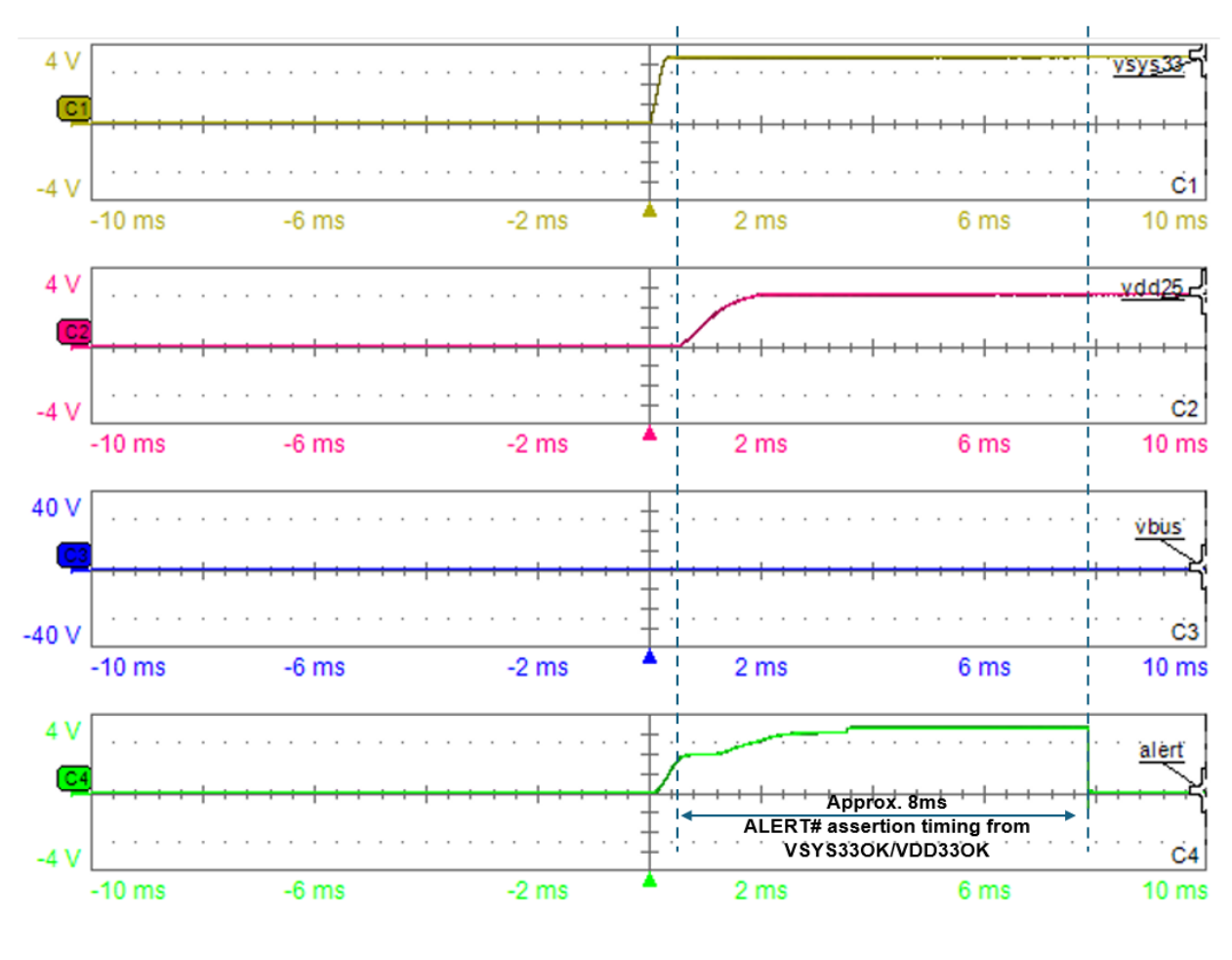

Figure 11. Startup VSYS33 Powered (2.0ms/Div, 2.0V/Div)

Figure 11. Startup VSYS33 Powered (2.0ms/Div, 2.0V/Div)

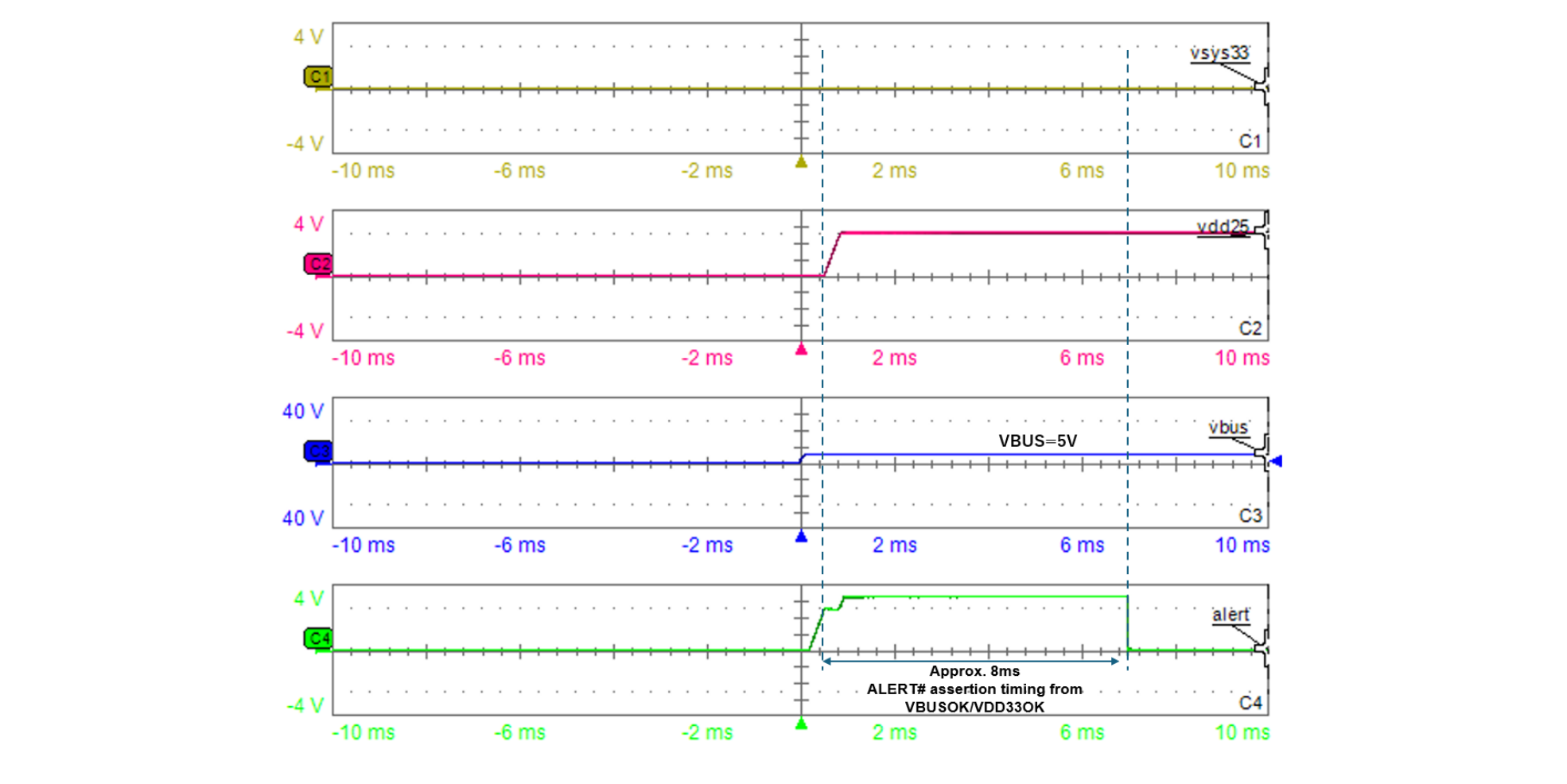

Figure 12. Startup from VBUS (2.0ms/Div on C1 = VSYS33, C2 = VDD25, C4 = ALERT#, 10V/Div on C3 = VBUS

Figure 12. Startup from VBUS (2.0ms/Div on C1 = VSYS33, C2 = VDD25, C4 = ALERT#, 10V/Div on C3 = VBUS
