RAA489400 Datasheet

2. Pin Information

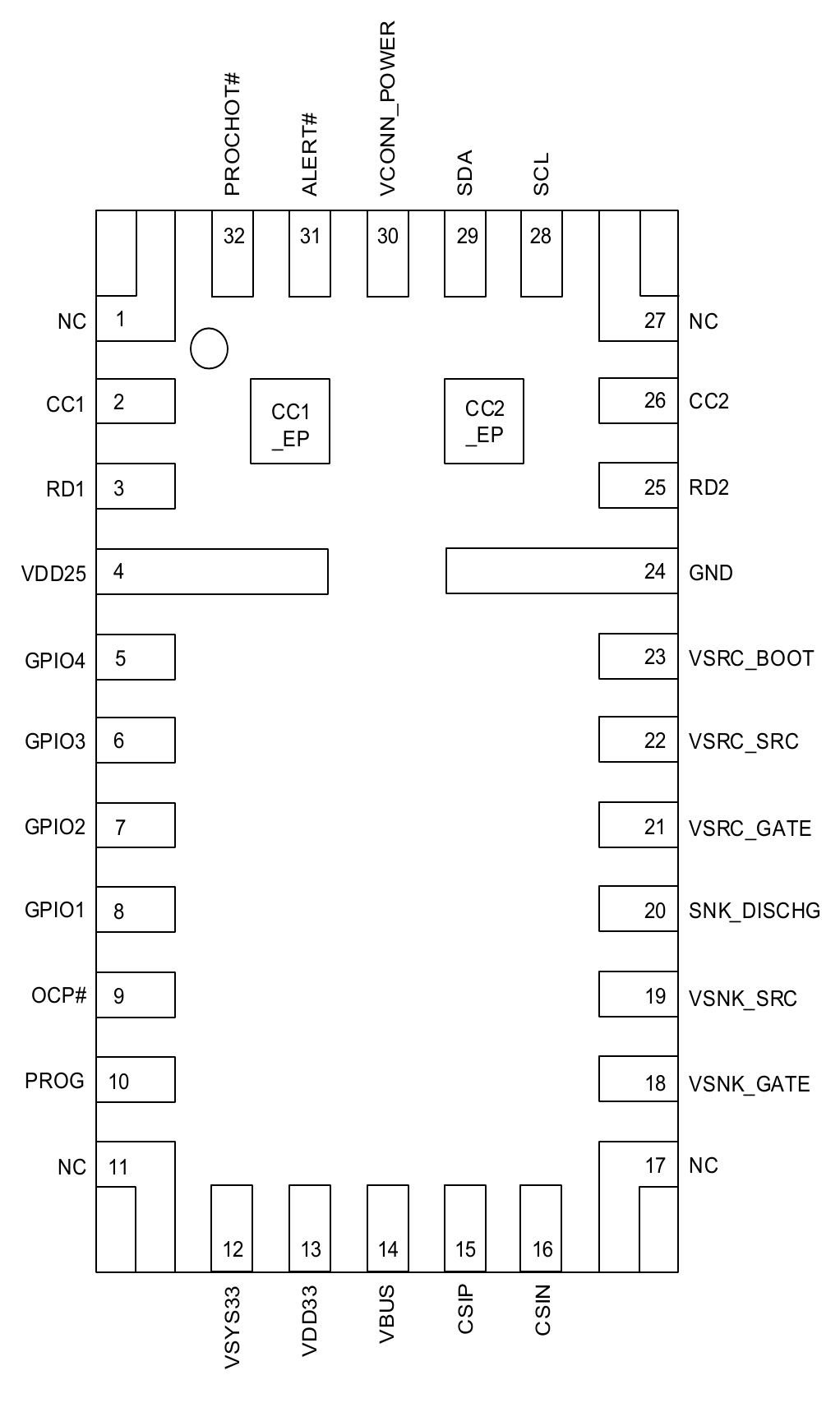

2.1 Pin Assignments

Pin numbers and names read from the drawing:

Side	Pin Number	Pin Name
Left	1	NC
Left	2	CC1
Left	3	RD1
Left	4	VDD25
Left	5	GPIO4
Left	6	GPIO3
Left	7	GPIO2
Left	8	GPIO1
Left	9	OCP#
Left	10	PROG
Left	11	NC
Bottom	12	VSYS33
Bottom	13	VDD33
Bottom	14	VBUS
Bottom	15	CSIP
Bottom	16	CSIN
Right	17	NC
Right	18	VSNK_GATE
Right	19	VSNK_SRC
Right	20	SNK_DISCHG
Right	21	VSRC_GATE
Right	22	VSRC_SRC
Right	23	VSRC_BOOT
Right	24	GND
Right	25	RD2
Right	26	CC2
Right	27	NC
Top	28	SCL
Top	29	SDA
Top	30	VCONN_POWER
Top	31	ALERT#
Top	32	PROCHOT#
Exposed pad	CC1_EP	CC1 exposed pad
Exposed pad	CC2_EP	CC2 exposed pad

2.2 Pin Descriptions

Pin Number	Pin Name	Description
1	NC	No connection
2	CC1	Configuration Channel 1, Analog pin from CC-PHY.
3	RD1	Dead battery Rd, Analog pin from CC-PHY. Tie to CC1 when dead battery Rd is supported.
4	VDD25	2.5V LDO output provides the bias power for internal digital logic and the TCPC transmitter. Connect a ceramic capacitor to GND. The effective capacitance of VDD25 capacitor should be at least 1µF at 2.5V. This pin cannot source current to external circuits.

| 5 | GPIO4 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)
GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. | | 6 | GPIO3 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)
GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. | | 7 | GPIO2 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)
GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. | | 8 | GPIO1 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)
GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. | | 9 | OCP# | Open-drain output with 1.8V or 3.3V pull-up.
Active low when a fault condition configured in OCP_OUTPUT_CTRL Register (A8h) is detected.
When all fault conditions are removed, OCP# pin is deasserted to high. | | 10 | PROG | A resistor from the PROG pin to GND to set the SMBus/I²C slave target address. | | 11 | NC | No connection | | 12 | VSYS33 | Main power input (minimum 3.0V, typical 3.3V). Connect a ceramic capacitor to GND. Recommended capacitance: 4.7µF. | | 13 | VDD33 | 3.3V LDO output provides the bias power for the internal analog and digital circuit. It also supplies power for the external TCPM.
Connect a ceramic capacitor to GND. The effective capacitance of VDD33 capacitor should be at least 1µF at 3.3V.
Do not apply additional load on the VDD33 pin other than TCPM and a pull-up resistor for SDA/SCL/ALERT# between RAA489400 and TCPM.
Note: If two or more RAA489400 VDD33 supplies 3.3V to TCPM, a diode is required for each VDD33 pin. | | 14 | VBUS | VBUS voltage sense and discharge input.
Input for internal LDO power on dead battery mode (VSYS33 = 0V). | | 15 | CSIP | Connect to the VBUS source current-sense resistor positive input through a resistor. Place a ceramic capacitor between CSIP and CSIN to provide differential-mode filtering.
The current sense resistor value must be 10mΩ. | | 16 | CSIN | Input for sensing VBUS voltage. Connect to the VBUS source current-sense resistor negative input. Use a Kelvin line between the voltage sense point and CSIN. | | 17 | NC | No connection | | 18 | VSNK_GATE | Gate drive output of N-channel MOSFET USB-C/PD VBUS sink path FET. | | 19 | VSNK_SRC | N-channel MOSFET source input reference for USB-C/PD VBUS sink path FET(s). | | 20 | SNK_DISCHG | Internal system sink path discharge between the VBUS sink path gate and system load (such as battery charger adapter side). | | 21 | VSRC_GATE | Gate drive output of N-channel MOSFET USB-C/PD Source FET, pumped 5V above VSRC_SRC. | | 22 | VSRC_SRC | N-channel MOSFET source input reference for USB-C/PD VBUS Source path FET(s). | | 23 | VSRC_BOOT | Connect external capacitor for charge pump of VSRC_GATE.
Recommended capacitance: 0.047µF. | | 24 | GND | Ground | | 25 | RD2 | Dead battery Rd, Analog pin from CC-PHY. Tie to CC2 when dead battery Rd is supported. | | 26 | CC2 | Configuration Channel 2, Analog pin from CC-PHY. |

| 27 | N.C. | No connection | | 28 | SCL | SMBus/I²C clock I/O. Connect to the clock line from TCPM for TCPC control. | | 29 | SDA | SMBus/I²C data I/O. Connect to the data line from TCPM for TCPC control. | | 30 | VCONN_POWER | 5V Input to the VCONN MUX providing power to the CC1/CC2 and the VSRC_GATE driver.
Connect a ceramic capacitor to GND.
The VCONN_POWER capacitor should be at least 4.7µF. | | 31 | ALERT# | Interrupt line for SDA and SCL. | | 32 | PROCHOT# | Open-drain output with 1.8V or 3.3V pull-up.
Active low when either VBUS source device disconnection or Sink Fast Role Swap is detected. The assertion condition configured in PROCHOT_EN Register (AAh) is detected.
When the condition is removed, the PROCHOT# pin is deasseted to high. | | CC1-EP | CC1 | Exposed pad for CC1. | | CC2-EP | CC2 | Exposed pad for CC2. |

2.3 Unused Pin Termination

Pin Number	Pin Name	Connection Method
1, 11, 17, 27	NC	Open
3	RD1	Open
5	GPIO4	Open
6	GPIO3	Open
7	GPIO2	Open
8	GPIO1	Open
9	OCP#	Open
12	VSYS33	Connect to GND if VSYS33 is not used for start-up.
18	VSNK_GATE	Open
19	VSNK_SRC	Connect to GND through a 0Ω resistor.
21	VSRC_GATE	Open
22	VSRC_SRC	Connect to GND through a 0Ω resistor.
23	VSRC_BOOT	Open
25	RD2	Open
30	VCONN_POWER	Connect to VDD33 if VCONN function is not used.
32	PROCHOT#	Open

Notes:

1. In the original document, the description cell for pins 5–8 (GPIO4, GPIO3, GPIO2, GPIO1) is a single merged cell spanning all four rows; the text has been repeated for each pin row here.
2. In the original document, the connection method cell for pins 5–8 (GPIO4, GPIO3, GPIO2, GPIO1) in the Unused Pin Termination table is a single merged cell containing "Open"; the value has been repeated for each pin row here.
