RAA489400 Datasheet
2. Pin Information

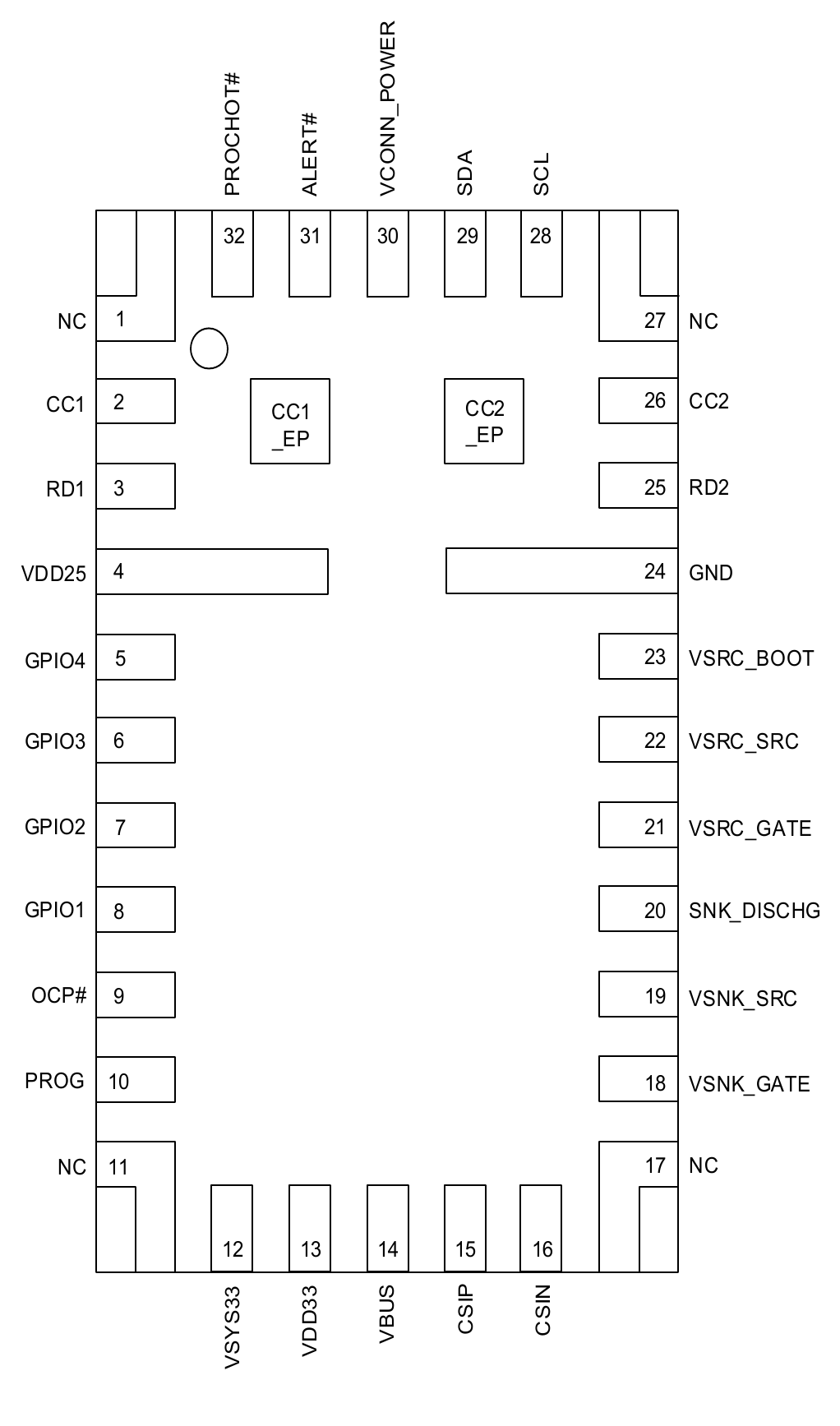

2.1 Pin Assignments
Pin numbers and names read from the drawing:
| Side | Pin Number | Pin Name |
|---|---|---|
| Left | 1 | NC |
| Left | 2 | CC1 |
| Left | 3 | RD1 |
| Left | 4 | VDD25 |
| Left | 5 | GPIO4 |
| Left | 6 | GPIO3 |
| Left | 7 | GPIO2 |
| Left | 8 | GPIO1 |
| Left | 9 | OCP# |
| Left | 10 | PROG |
| Left | 11 | NC |
| Bottom | 12 | VSYS33 |
| Bottom | 13 | VDD33 |
| Bottom | 14 | VBUS |
| Bottom | 15 | CSIP |
| Bottom | 16 | CSIN |
| Right | 17 | NC |
| Right | 18 | VSNK_GATE |
| Right | 19 | VSNK_SRC |
| Right | 20 | SNK_DISCHG |
| Right | 21 | VSRC_GATE |
| Right | 22 | VSRC_SRC |
| Right | 23 | VSRC_BOOT |
| Right | 24 | GND |
| Right | 25 | RD2 |
| Right | 26 | CC2 |
| Right | 27 | NC |
| Top | 28 | SCL |
| Top | 29 | SDA |
| Top | 30 | VCONN_POWER |
| Top | 31 | ALERT# |
| Top | 32 | PROCHOT# |
| Exposed pad | CC1_EP |
CC1 exposed pad |
| Exposed pad | CC2_EP |
CC2 exposed pad |
2.2 Pin Descriptions
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | NC |
No connection |
| 2 | CC1 |
Configuration Channel 1, Analog pin from CC-PHY. |
| 3 | RD1 |
Dead battery Rd, Analog pin from CC-PHY. Tie to CC1 when dead battery Rd is supported. |
| 4 | VDD25 |
2.5V LDO output provides the bias power for internal digital logic and the TCPC transmitter. Connect a ceramic capacitor to GND. The effective capacitance of VDD25 capacitor should be at least 1µF at 2.5V. This pin cannot source current to external circuits. |
| 5 | GPIO4 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. |
| 6 | GPIO3 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. |
| 7 | GPIO2 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. |
| 8 | GPIO1 | General purpose input and output with a 3.3V push-pull output, 1.8V or 3.3V open-drain output, 1.8V or 3.3V input, or disable. It can be used as a VBUS source or a sink switch control and overcurrent input.
• VBUS source power switch enable
• VBUS sink power switch enable
• Overcurrent Input (from external VBUS source power switch)
• General Purpose Input
• General Purpose Output (push-pull)
• General Purpose Output (open-drain)GPIO1_CTRL Register, GPIO2_CTRL Register, GPIO3_CTRL Register, GPIO4_CTRL Register, VBUS_PATH_CTRL Register, VBUS_GPIO_CTRL Register, and GPIO_OC_EN Register control those configurations. |
| 9 | OCP# | Open-drain output with 1.8V or 3.3V pull-up.
Active low when a fault condition configured in OCP_OUTPUT_CTRL Register (A8h) is detected.
When all fault conditions are removed, OCP# pin is deasserted to high. |
| 10 | PROG | A resistor from the PROG pin to GND to set the SMBus/I²C slave target address. |
| 11 | NC | No connection |
| 12 | VSYS33 | Main power input (minimum 3.0V, typical 3.3V). Connect a ceramic capacitor to GND. Recommended capacitance: 4.7µF. |
| 13 | VDD33 | 3.3V LDO output provides the bias power for the internal analog and digital circuit. It also supplies power for the external TCPM.
Connect a ceramic capacitor to GND. The effective capacitance of VDD33 capacitor should be at least 1µF at 3.3V.
Do not apply additional load on the VDD33 pin other than TCPM and a pull-up resistor for SDA/SCL/ALERT# between RAA489400 and TCPM.
Note: If two or more RAA489400 VDD33 supplies 3.3V to TCPM, a diode is required for each VDD33 pin. |
| 14 | VBUS | VBUS voltage sense and discharge input.
Input for internal LDO power on dead battery mode (VSYS33 = 0V). |
| 15 | CSIP | Connect to the VBUS source current-sense resistor positive input through a resistor. Place a ceramic capacitor between CSIP and CSIN to provide differential-mode filtering.
The current sense resistor value must be 10mΩ. |
| 16 | CSIN | Input for sensing VBUS voltage. Connect to the VBUS source current-sense resistor negative input. Use a Kelvin line between the voltage sense point and CSIN. |
| 17 | NC | No connection |
| 18 | VSNK_GATE | Gate drive output of N-channel MOSFET USB-C/PD VBUS sink path FET. |
| 19 | VSNK_SRC | N-channel MOSFET source input reference for USB-C/PD VBUS sink path FET(s). |
| 20 | SNK_DISCHG | Internal system sink path discharge between the VBUS sink path gate and system load (such as battery charger adapter side). |
| 21 | VSRC_GATE | Gate drive output of N-channel MOSFET USB-C/PD Source FET, pumped 5V above VSRC_SRC. |
| 22 | VSRC_SRC | N-channel MOSFET source input reference for USB-C/PD VBUS Source path FET(s). |
| 23 | VSRC_BOOT | Connect external capacitor for charge pump of VSRC_GATE.
Recommended capacitance: 0.047µF. |
| 24 | GND | Ground |
| 25 | RD2 | Dead battery Rd, Analog pin from CC-PHY. Tie to CC2 when dead battery Rd is supported. |
| 26 | CC2 | Configuration Channel 2, Analog pin from CC-PHY. |
| 27 | N.C. | No connection |
| 28 | SCL | SMBus/I²C clock I/O. Connect to the clock line from TCPM for TCPC control. |
| 29 | SDA | SMBus/I²C data I/O. Connect to the data line from TCPM for TCPC control. |
| 30 | VCONN_POWER | 5V Input to the VCONN MUX providing power to the CC1/CC2 and the VSRC_GATE driver.
Connect a ceramic capacitor to GND.
The VCONN_POWER capacitor should be at least 4.7µF. |
| 31 | ALERT# | Interrupt line for SDA and SCL. |
| 32 | PROCHOT# | Open-drain output with 1.8V or 3.3V pull-up.
Active low when either VBUS source device disconnection or Sink Fast Role Swap is detected. The assertion condition configured in PROCHOT_EN Register (AAh) is detected.
When the condition is removed, the PROCHOT# pin is deasseted to high. |
| CC1-EP | CC1 | Exposed pad for CC1. |
| CC2-EP | CC2 | Exposed pad for CC2. |
2.3 Unused Pin Termination
| Pin Number | Pin Name | Connection Method |
|---|---|---|
| 1, 11, 17, 27 | NC |
Open |
| 3 | RD1 |
Open |
| 5 | GPIO4 |
Open |
| 6 | GPIO3 |
Open |
| 7 | GPIO2 |
Open |
| 8 | GPIO1 |
Open |
| 9 | OCP# |
Open |
| 12 | VSYS33 |
Connect to GND if VSYS33 is not used for start-up. |
| 18 | VSNK_GATE |
Open |
| 19 | VSNK_SRC |
Connect to GND through a 0Ω resistor. |
| 21 | VSRC_GATE |
Open |
| 22 | VSRC_SRC |
Connect to GND through a 0Ω resistor. |
| 23 | VSRC_BOOT |
Open |
| 25 | RD2 |
Open |
| 30 | VCONN_POWER |
Connect to VDD33 if VCONN function is not used. |
| 32 | PROCHOT# |
Open |
Notes:
- In the original document, the description cell for pins 5–8 (
GPIO4,GPIO3,GPIO2,GPIO1) is a single merged cell spanning all four rows; the text has been repeated for each pin row here. - In the original document, the connection method cell for pins 5–8 (
GPIO4,GPIO3,GPIO2,GPIO1) in the Unused Pin Termination table is a single merged cell containing "Open"; the value has been repeated for each pin row here.
